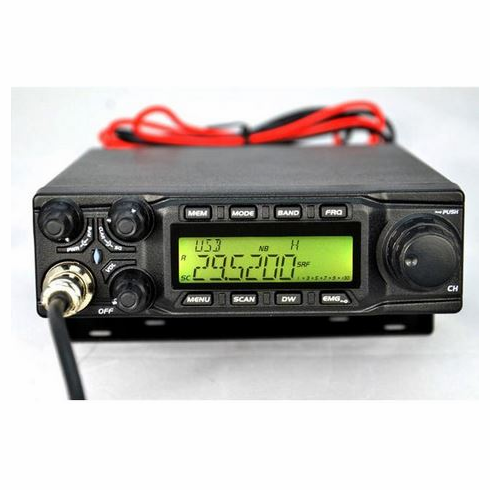

AnyTone AT6666!
Product Description
LesComm Enhancements, Power Tune and full frequency coverage now included!*LesComm Enhancements include DC input Buffer/Filter cap upgrade, Voltage Regulator Buffer/Filter cap upgrade!
YouTube Video; https://youtu.be/ro3PG-yRiLk
SUPER COMPACT ALL MODE FULL FEATURED HIGH OUTPUT RADIO!
Power Output AM: 15W / FM 45W / SSB: 60W(PEP) Over 100 watts peak SSB after Lester's Power Tune. Current Drain 10A (with modulation) Modulation AM/FM/SSB Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB SSB Carrier Suppression 55dB Unwanted Sideband 50dB Frequency Response AM/FM: 300 to 3000Hz SSB 450 to 2500Hz Output Impedance 50 ohms, unbalanced
Features:
Frequency: 25.615~30.105MHz (*with full coverage) Mode: AM, FM, USB, LSB, PA. AM PEP Max: 60W FM Max: 45W SSB Max: 60W ASQ function. Large LCD display. ECHO function. Frequency programmable on computer. VFO channel. CTCSS/DCS (option). Big LCD displays frequency and all kinds of information PA-AM-FM-USB-LSB mode Frequency Tuning Step can be 10HZ, 100HZ, 100Khz,1MHz ± 1.5KHz Clarifier Flexible menu function and PC programming software ECHO Function SQ, ASQ Function (FM and AM mode only) RF GAIN Adjustment RF PWR Adjustment SCAN Function Programmable RB Function NB/ANL Function DW DUAL-WATCH Function BEEP Voice Prompt +10KHZ Function SWR?S/RF function TOT function HI-CUT Function EMG CALL SWR PROTECTION Power Supply Voltage Protection Key-Lock Function Seven (7) Color LCD Display Six(6) Groups Memory Channel CTCSS/DCS Code(Optional)
Enhancements, Full coverage with tune add additional shipping time.
Accessories
 Product Description For radios where the power cable is wired direct to the main radio board and has no rear power connector.
This mod will Install 2 sets (+/- & +/-) of 45 Amp Anderson Power Poles (one set on the radio side and a mating set on the battery side) in the power cable close to the radio for quick power disconnect without limiting current to the radio.***** Regular price: $50.00 Sale price: $41.00 |  Product Description Use this pigtail adapter to quickly connect an 8 pin or 6 pin mic jack radio to a standard 4 pin mic.*Or use this pigtail adapter to quickly connect an 6 pin or 8 pin mic to a standard 4 pin mic jack radio. ***** Regular price: $21.99 Sale price: $18.03 |
 Product Description This option includes the selected MOSFET's, their installation. Complete with Bias setting and alignment.AT6666 uses 4. Apollo II = 3 SR955 = 4 SR94 = 3 Galaxy DX959 = 2, (3 with dual final upgrade) Lincoln II and II+ = 3 ***** Regular price: $95.00 Sale price: $77.90 |
TERMS:
"Stock/No option" means just that. These receive only a general tune up or minor mods like adding a CTCSS module, or doing the frequency conversion, etc.
"Stock/No option radios" are usually less than 1 week.
"Custom/Modified" examples include LesComm Enhancements, Basic Clarifier mod, Amp Switch, Hi Cut Filter, etc. just to name a few. However if you add a lot of these small upgrades it could move your order to the "Major Custom" category. Normal turn around time for "Custom/Modified radio's" 10 to 20 business days depending on model. Depending on the difficulty of your build or the builds in front of it, this time could be longer.
"Major Custom" in this case means that you have added customizing options that requires significant modification(s) to the stock radio that takes more than 20 hours to accomplish. Like complete radio tear-downs and rebuilds as a different radio. Normal turn around times for "Major Custom Build radio's" 30 to 90 business days. Depending on the difficulty of your build or the builds in front of it, this time could be longer.
Radios are built AFTER they are ordered in the order of "payment" received. Depending on the difficulty of your build or the builds in front of it, these times could be longer. Remember, if you want changes made to your radio, those changes take time.
Scanners ship within two business days.
There are NO REFUNDS for "custom radio" , "amplifier" or "power supply" orders. NO EXCEPTIONS! SO BE SURE BEFORE YOU ORDER EITHER OF THESE!
10% restocking fee on "non-customized" radio returns. .
