Super959 Green
Product Description
ONLY ONE LIKE THIS IN STOCK AT THIS TIME.
(More Coming.)

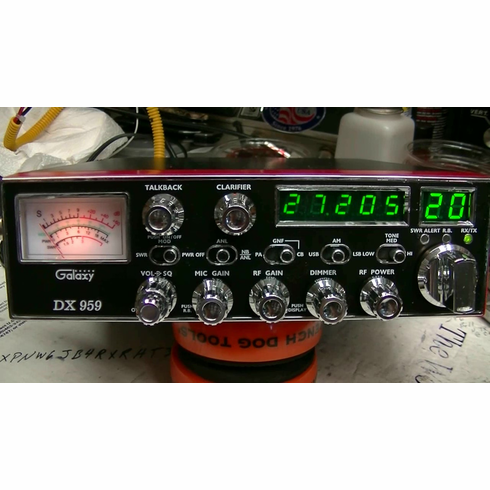

The LesComm Super DX959 with an LC35-128 already installed.
Includes;
Top Gun CP-1 Audio Compressor
DC Input Power Filter/Buffer Capacitor Upgrade
10.7 I.F. Filter Upgrade
1st RF Transistor Upgrade
Voltage Regulator Filter/Buffer Capacitor Upgrade
Driver & Final Bias Correctly Set
COMPLETE TX & RX Alignment With Emphasis On TX Audio
Unlocked Clarifier
Hi Cut Filter On Lo Tone Position
Display filter changed to Green
From the Top Gun Tech web page; "Full tone, clear, high swing audio (AM) modulation is achieved with the addition of the CP-1 Compressor micro circuit board. The Top Gun Compressor works in AM, FM, and SSB keeping the modulation at peak performance in all these modes. This circuit works with or without the modulation limiter. For the purest audio, the limiter can be adjusted for excellent forward swing without any square wave audio. Without the limiter the compressor maintains high-level audio without severe squaring of the audio signal. It is the squaring of the audio peaks that create the distortion and splatter of adjacent frequencies. On 30-50 Watt radios, the dead-key or carrier can be set to 1 Watt or less with a modulation swing to the full output potential of the radio transmitter."
Unlike other sellers, NO LIMITERS ARE CUT OR DISABLED!! Resulting in CLEAN transmit audio!
These are pre-built/ready to ship. As such no internal option changes or additions allowed.
*****
