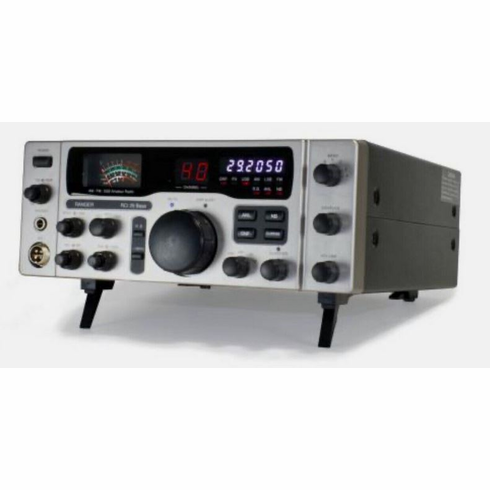

RCI-29 BASE RADIO
Product Description
Flip Down Feet Elevates the front of the radio for easier access!
Includes Noise Filter (GNF), Automatic Noise Limiter (ANL), and Noise Blanker.
Transmit & Receive Clarifier.
4 pin mic jack.
Echo and talkback.
"S" Meter, Modulation Percentage (AM), Power Calibrated (AM & SSB), SWR.
White LED's.
Two rear mounted fans for Max Cooling
SPECIFICATIONS GENERAL Type: Citizen band / "Freeband" / Export transceiver Frequency range: Export mode 25.615-28.315 MHz// 10 m mode 28.765-29.205 MHz Channels / tuning steps: 240 (6*40) Mode: AM / FM / SSB Frequency control: PLL/CPU Frequency stability: ?% Clarifier or Delta tune: ±? KHz Power supply: Mains: (3-pin IEC C14 connector) or 13.8 VDC (3-pin connector) Current drain / power consumption: RX: ? A @ 13.8 VDC TX: ? A @ 13.8 VDC Antenna impedance / connector: 50 ohm / SO-239 Dimensions (W*H*D): 286*121*343 mm (11.25*4.75*13.5") Weight: 5.44 Kg (12 lb) Other features: PA. ANL/NB. Talkback. Roger beep. Echo. Dimmer. +10 KHz button. SWR meter and SWR alert. Dual cooling fans.
RECEIVER SECTION Receiver system: Double conversion superheterodyne 1st IF: 10.7 MHz 2nd IF: 455 KHz - Ceramic filter: LT455HTs Sensitivity: Selectivity: Image rejection: AF output power / speaker: 10 W at 5% distortion / 8 ohm External speaker connector: 3.5 mm TRANSMITTER SECTION RF output power:
Max power AM: 25 W (Carrier / dead key) - 120 W PEP FM (RMS): 50 W SSB (PEP): 100 W Modulation system: Max FM deviation (Factory set): ±3 KHz Spurious emissions: Better than -65 dB Microphone impedance / connector: 300 ohm / 4-pin (Metal locking ring connector, Cobra Type) Microphone input level: unkn mV ***** *****
*****
