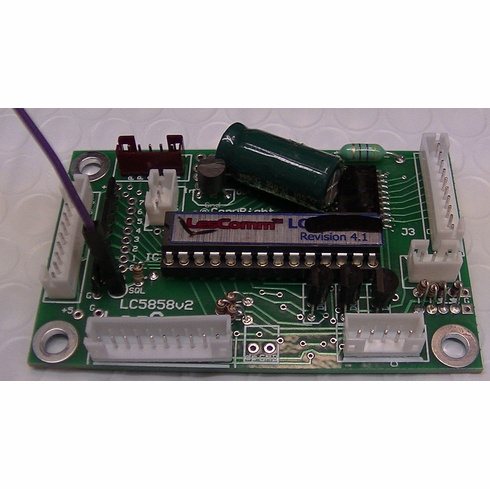

LesComm LC5858 for the 858PLL
Product Description
No "encoder" required. I wrote code in the software that allows the use of the Channel Selector switch to go up or down. It even deals with the out-of-sequence steps around channel 23. This means you won't need to rebuild the channel selector area of your radio to have a 3 digit display!
(Uniden made radios such as Cobra, President and others will need special adapters so soldering is required to install these.)
Continuous channel tuning. No skips. 26.085MHz thru 28.045MHz. SquelchScanTM. Scan Up or Down. Scan stops when a signal is received. Hi Range; Channel 1 Reference; -88 / c19 / u41 / 104 (26.085 to 28.045)President/Cobra Channel 1 Reference; "-" indicates all channels below CB channel 1, "c" indicates cb channels, "u" indicates channels above 40 "1XX" equals 28MHz channels. A's are 03A, 07A, etc.) Channel Selector Function (CSF) switch. Changes the channel selector to your band switch. Jumps 45 channels Up or down with each click. The displays will be available in either Blue-35mcd, Red-30mcd or Green-25mcd. *New Pure Green-35mcd. Price includes internal Piggy-back PCBoard kit (to replace internal channel display) See above. Internal display will require soldering. This kit is assembled after your order is received. Please allow for assembly time.
WARNING! This unit is Not Legal For Class D CB Use In The U.S.A. *An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.
_______________________________________________________________________________.
Continuous channel tuning. No skips. 26.085MHz thru 28.045MHz. SquelchScanTM. Scan Up or Down. Scan stops when a signal is received. Hi Range; Channel 1 Reference; -88 / c19 / u41 / 104 (26.085 to 28.045)President/Cobra Channel 1 Reference; "-" indicates all channels below CB channel 1, "c" indicates cb channels, "u" indicates channels above 40 "1XX" equals 28MHz channels. A's are 03A, 07A, etc.) Channel Selector Function (CSF) switch. Changes the channel selector to your band switch. Jumps 45 channels Up or down with each click. The displays will be available in either Blue-35mcd, Red-30mcd or Green-25mcd. *New Pure Green-35mcd. Price includes internal Piggy-back PCBoard kit (to replace internal channel display) See above. Internal display will require soldering. This kit is assembled after your order is received. Please allow for assembly time.
WARNING! This unit is Not Legal For Class D CB Use In The U.S.A. *An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.
_______________________________________________________________________________.
