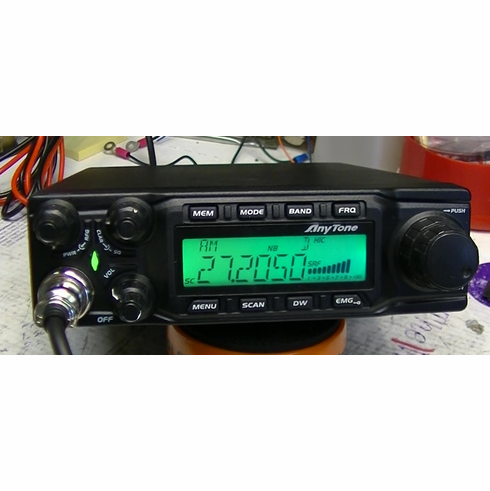

Anytone AT6666 -New- Limited supply
Product Description
Product Description
SUPER COMPACT ALL MODE FULL FEATURED HIGH OUTPUT RADIO! Power Output minimum AM: 15W / FM 45W / SSB: 60W(PEP) Over 100 watts peak SSB after Lester's Power Tune. Current Drain 10A (with modulation) Modulation AM/FM/SSB Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB SSB Carrier Suppression 55dB Unwanted Sideband 50dB Frequency Response AM/FM: 300 to 3000Hz SSB 450 to 2500Hz Output Impedance 50 ohms, unbalanced
Features:
Frequency: 25.615~30.105MHz Mode: AM, FM, USB, LSB, PA. AM PEP Max: 60W FM Max: 45W SSB Max: 60W ASQ function. Large LCD display. ECHO function. Frequency programmable on computer. VFO channel. CTCSS/DCS (option). Big LCD displays frequency and all kinds of information PA-AM-FM-USB-LSB mode Frequency Tuning Step can be 10HZ, 100HZ, 100Khz,1MHz ± 1.5KHz Clarifier Flexible menu function and PC programming software ECHO Function SQ, ASQ Function (FM and AM mode only) RF GAIN Adjustment RF PWR Adjustment SCAN Function Programmable RB Function NB/ANL Function DW DUAL-WATCH Function BEEP Voice Prompt +10KHZ Function SWR?S/RF function TOT function HI-CUT Function EMG CALL SWR PROTECTION Power Supply Voltage Protection Key-Lock Function Seven (7) Color LCD Display Six(6) Groups Memory Channel CTCSS/DCS Code(Optional)
______________________________________________________________________________________________________
SUPER COMPACT ALL MODE FULL FEATURED HIGH OUTPUT RADIO! Power Output minimum AM: 15W / FM 45W / SSB: 60W(PEP) Over 100 watts peak SSB after Lester's Power Tune. Current Drain 10A (with modulation) Modulation AM/FM/SSB Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB SSB Carrier Suppression 55dB Unwanted Sideband 50dB Frequency Response AM/FM: 300 to 3000Hz SSB 450 to 2500Hz Output Impedance 50 ohms, unbalanced
Features:
Frequency: 25.615~30.105MHz Mode: AM, FM, USB, LSB, PA. AM PEP Max: 60W FM Max: 45W SSB Max: 60W ASQ function. Large LCD display. ECHO function. Frequency programmable on computer. VFO channel. CTCSS/DCS (option). Big LCD displays frequency and all kinds of information PA-AM-FM-USB-LSB mode Frequency Tuning Step can be 10HZ, 100HZ, 100Khz,1MHz ± 1.5KHz Clarifier Flexible menu function and PC programming software ECHO Function SQ, ASQ Function (FM and AM mode only) RF GAIN Adjustment RF PWR Adjustment SCAN Function Programmable RB Function NB/ANL Function DW DUAL-WATCH Function BEEP Voice Prompt +10KHZ Function SWR?S/RF function TOT function HI-CUT Function EMG CALL SWR PROTECTION Power Supply Voltage Protection Key-Lock Function Seven (7) Color LCD Display Six(6) Groups Memory Channel CTCSS/DCS Code(Optional)
