New! LesComm Super LC998v1000p

LesComm Power Tuned Stryker SR-94HPC. Limited Quantity Available!

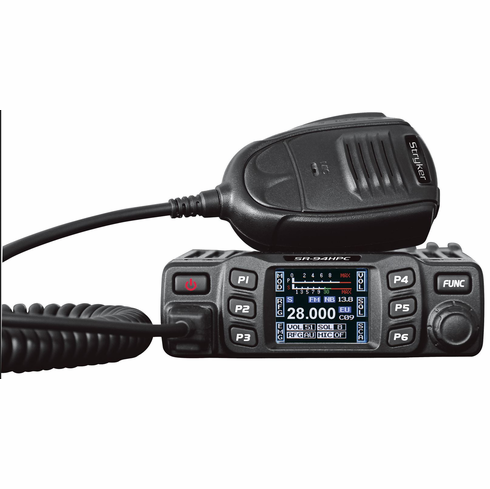

Stryker SR94HPC
Stryker SR94HPC
Item#: SR94HPC
Regular price: $194.99
Sale price: $149.99
Power Tune and full coverage:  Antenna:

Product Description
LesComm Power Tune and full coverage optional.

The new SR-94HPC 10 Meter Radio offers advanced features, customization settings, and 70 watts AM PEP on the 10 Watt setting, in a remarkably small chassis. The wrap around cast aluminum heatsink does an excellent job at dissipating any heat that’s generated during transmit. The SR-94HPC features a full-color TFT display. The clarity of the screen allows you to read it even if you are quickly glancing at it while driving down the road. You can choose what you want to show on the screen (features, functions, frequency, voltage, S units and more). There is a total of 6 push buttons around the screen (P1 – P6). Each button is assigned to a function; for example microphone gain or rf gain. Part of what makes the SR-94HPC unique is you can customize what feature or functions that you use most frequently. The SR-94HPC is the perfect radio for an amateur that enjoys talking on 10 Meter FM Repeaters. With the optional CTCSS board, the SR-94HPC has 38 CTCSS tones, 104 DCS tones, and repeater offsets (+ or -). The power output vs. physical size of the radio is what will surprise many of you! This much power is usually only available in a full-size DX chassis. We managed to utilize three FQP13N10 final transistors for 45+ watts of PEP. Like all Stryker Radios, it has strong AM transmit audio. Measuring in at only 5.8” L x 4.8” W x 1.4” H, this radio will fit in any vehicle, regardless of size. Never before has full featured, high power radio been available in compact chassis. With clean, modern styling, the SR-94HPC looks great in any vehicle. The PCB & frame are exceptionally rugged, on the road, off the road or no road, the SR-94HPC can take it without any problem.

Features Small Size: L 5.87" x 4.75" x H 1.5", 10 & 12 Meters, 45+ Watts PEP, RF Power High / Low, AM / FM, MIC / RF Gain Controls, PC Programmable, CTCSS / Rep Offsets, Function Menu & More, Dimmable TFT Color Display, High & Low Power (4 watt or 10-watt carrier), Backlit Keys, Scan Function, Dual Channel Watch, Channel and Frequency Display, Integrated Automatic SWR meter, Digital S-meter Display, 4 Memory Channels, Operating Voltage, RF gain Of / Auto + 10 Attenuation Levels, Noise Blanker Function & Hi-Cut Filter, Channel 9 & 19 Quick Access, Roger Beep function (8 settings), CTCSS / DCS (encode & decode) 38 CTCSS / 104 DCS, DTMF (encode), Microphone with UP / DOWN selection, Squelch (Manual or ASQ) and Volume Adjustable, Programmable via PC Software (Download from Stryker Website soon), Time-Out Timer function, Bluetooth (optional), ___________________________________________________

.
Accessories
Palomar Max Mod
Product Description
Product Description Does the regulator in your radio run hot? Excessive heat from a transistor means the part is undersized for the circuit or that the circuit itself is not very efficient. Changing the radio’s modulation circuit is impossible. But the solution for this problem is the Palomar MAX-MOD Transistor. Palomar is a famous old CB brand name from the USA. The name is owned and used now by EKL Components, the mother company also for Magnum Radio’s and RF Limited Accesories. New in the Palomar program is the MAX-MOD, a special PNP transistor. The MAX-MOD is a replacement and upgrade PNP transistor for the modulation circuit in most radio’s. The MAX-MOD replaces the common 2SB and TIP parts. The MAX-MOD works very well in 10M radio’s, including Stryker, Anytone, Galaxy and President models. The MAX-MOD will give the RF section the current it needs and will increase the peak power by and average of 10% or more. The MAX-MOD has the same lead spacing as the smaller transistors it replaces, making soldering very easy. The MAX-MOD uses a huge TO-3PL package for improved heat dissipation.

FESATURES OF PALOMAR MAX-MOD TRANSISTOR: • High Current / High Power PNP Power Transistor (AM Regulator) • Replaces & Upgrades TIP32 & 36, 2SB688, 2SB754, 2SB817, 2SB827 and other AM Regulator Transistors in CB and Amateur Radios • Supplies Necessary Current Levels for Maximum Modulation • Most Radios See a 10% Increase in Peak Power Levels • Runs 40%* Cooler than Stock Regulators • Massive TO-3PL Package for Improved Heat Dissipation • Comes with Mica Insulator

Price includes installation in a new radio. ____________________________________________________________________________________

Regular price: $50.00
Sale price: $45.00
Palomar Max Mod palmaxmod

CTCSS Module for SR-94HPC and Apollo II Radios
Product Description
Price includes installation

Regular price: $64.99
Sale price: $58.49
CTCSS Module for SR-94HPC and Apollo II Radios SR94CTCSS

Mic Pigtail Adapter Cable
Product Description
Overall length is measured end to end of complete assembly.

6 pin mic or RJ-45 8 Pin Mic Plug to Standard 4 pin Mic.

Converts to Yaesu/Cobra, Stryker SR-955HPC 4 Pin Round Inline Mic Jack

to

Anytone AT-5555N, Anytone Apollo II, Stryker SR-94HPC, RJ-45 8 Pin Mic Plug or AT-6666 6 pin, Magnum-1.

This adapter converts Push To Talk, Microphone Audio & Ground and ground only.

*Color may vary* ** This adapter DOES NOT SUPPLY VOLTAGE **

________________________________________________________________________

Regular price: $30.00
Sale price: $27.00
Mic Pigtail Adapter Cable 4Pto6P8E
Radio Model:

Anderson Power Poles
Product Description
For radios where the power cable is wired direct to the main radio board and has no rear power connector. This mod will Install 2 sets (+/- & +/-) of 45 Amp Anderson Power Poles (one set on the radio side and a mating set on the battery side) in the power cable close to the radio for quick power disconnect without limiting current to the radio.

________________________________________________

Regular price: $50.00
Sale price: $45.00
Anderson Power Poles AndPwrPls

WE BUILD CUSTOM RADIOS! I BELIEVE IN QUALITY BEFORE QUANTITY! (And from the sales I'm receiving, so do you!) SO IF YOU'RE IMPATIENT, DO NOT ORDER FROM ME!! Let me repeat that, IF YOU'RE IMPATIENT, DO NOT ORDER FROM ME!! I SIMPLY REFUSE TO RUSH MY BUILDS. Each radio goes through 24 hours minimum of burn-in testing when it's finished. IT WILL BE RIGHT WHEN IT LEAVES MY SHOP! Our Build Policy; Average turn around time for "CUSTOM BUILT RADIOS" is running between 90 to 180 days at present (Nov 2018). Customers are taking advantage of the MANY custom options we offer. Depending on the difficulty of your build OR THE BUILDS IN FRONT OF IT, this time could be longer! There are NO REFUNDS for custom radio orders. NO EXCEPTIONS! NO EXCEPTIONS! SO BE SURE BEFORE YOU ORDER! Every radio gets tuned/aligned unless you specifically say not to. So, no options radios are usually 10 to 20 business days depending on the model. 20% restocking fee on "as new, non-customized" radio returns. Radios are built AFTER they are ordered in the order of "payment" received. AGAIN, THERE ARE NO REFUNDS OR RETURNS ON CUSTOM RADIO ORDERS, NO EXCEPTIONS. So be sure BEFORE you order! This is how it works folks. When you place an order for one of our custom radios we immediately (that day) order the necessary parts needed to build that radio including the donor radio, and set them aside for your build. So we have already invested your money in your order. We do this to prevent coming up short of the parts needed because it was discontinued or changed. (Which happens a lot!) I know this is a long time folks. But I'm only one person. I will work as fast as I can, without compromising quality, to get your order out. So as it says above, if you are an impatient person, do not order from me. Side note; We have stopped selling custom radios on ebay. Because of this Lester expects build times to become shorter. And our build times are slowly becoming shorter. We very much appreciate your business. And to all of my many, many repeat customers a very special thank you. Tells me I'm doing something right! 73 Everybody! Copyright © LestersCustomTruckShop All Rights Reserved. __________________________________________________________________________________________________________________________________________________________
