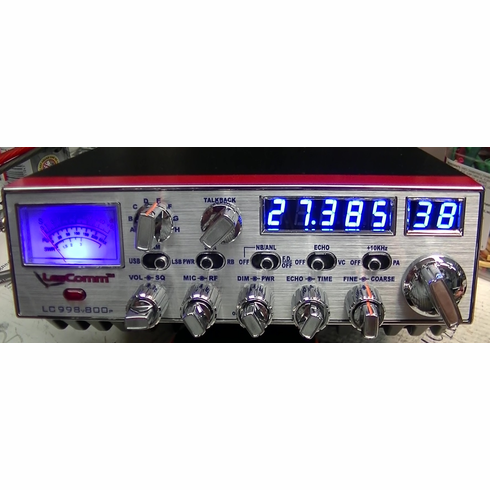

LesComm Super LC998v800p 800 Watt Custom Radio.
This radio has been upgraded using a 4 transistor amp board and 2879 transistors! (RFP2879's) As you will see in the video it produced over 800 watts peak on a 50 amp switched power supply at 14.8 volts DC using the Toshiba Red Dots.
I recommend a 100 amp power supply to power the radio with these. You should then see it's full potential! Estimated 900 watts+ peak with the Red Dot version.
Both the amp board and the transistors are costly and hard to find. Don't miss out! Get yours now! Toshiba 2SC2879RD are in very short supply and may become unavailable at any time!
See the video; https://youtu.be/cd7ojdaQubk
Deluxe Clarifier. +5 / -5. BLUE DISPLAY. Better Dual finals. RX/NB/AGC Schottky diode upgrade. Blue/Red TX/RX LED. Receive circuit upgrade. Cuts down white noise. Continuous channels, no skips using the +10 switch. The radio has been tuned and aligned by a professional with the proper equipment. All you have to do is hook it up and start talking! Receive circuit improved to lower noise floor which lessens white noise. This improves the signal to noise ratio of the receiver.
New Red flame - faceplate decal!
Top Gun CP-1 included!
Amp switch included!
Hi-Cut Filter included!
Much better than the stock DX98! And with the lower white noise, better signal to noise ratio than all of the other stock 98 SSB radio's! Comes with stock Mic, New Heavy Duty Power cord, and bracket. Frequency counter built in and blue color.
Priced to sell quick. Won't last long as proven with past radio's. Buy it now!!! Tested before it ships so you know it'll work when you get it! Please see the pictures and video's for information. Visit LestersCustomTrkShp on youtube!
*An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.
4 AWG Cable Upgrade for LesComm LC998v800p Includes 20' 4 AWG cable (10'Red/10'Blk), two 120 Amp Anderson Power Poles, & ANL Fuse holder with 100 amp fuse.
Regular price: $119.99
Sale price: $107.99
9.6CFM Hi Speed 7000 RPM Dual Ball Bearing Fans to replace the internal fans on the Galaxy and Ranger Amp sections.
Regular price: $50.00
Sale price: $45.00
HIGHLY RECOMMENDED FOR THE LC998V800P, RCI2970N2/N4/N8 AND OTHERS WITH BOTTOM AMP SECTION! YouTube Video of it in action; https://youtu.be/R9XOl5T7nd8
Auxiliary cooling fan for Galaxy, Ranger and others that have the large heatsink with shield on the bottom of the radio. Like the RCI2970N2 & N4, Galaxy DX98VHP, LesComm LC998 and many others. bgears b-120, 120mm, 2 ball bearing, high speed, high performance, 15 blades Fan . 120mm 2000 RPM 110 CFM 2 Ball Its two-ball-bearing design, 15 aerodynamic design blades ensure high speed, great cooling and silent performance. The translucent blades with four LEDs deliver a stylish appearance with an enhanced lighting effect. Great performance Running at 2000RPM and a low noise level of 37.3dBA, this 120mm fan delivers airflow of up to 110CFM for superior heat dissipation. Mounted on the bottom of the Ranger/Galaxy heat-sinks to help keep your amp cool!
Available in Black (no LEDs), Blue and Red. Price includes installation.
Regular price: $129.99
Sale price: $116.99
The SP-1a Speech Processor was developed by Clear Channel Corporation for the Ranger AR-3300 and AR3500 radios. It works well in most radios in AM FM & SSB. It is an audio processor that delivers an average of 90% modulation. It boosts lower levels to within 90% of it’s maximum output with a very low distortion. It connects in-line of the audio Mic input of the microphone jack. It also requires a 12 Volt connection in the radio. A SPST switch can be used to switch the SP-1a in and out of the circuit. When switched off the speech processor is completely out of the circuit leaving the radio back to stock audio. Price includes installation.
Regular price: $110.00
Sale price: $99.00
Does the regulator in your radio run hot? Excessive heat from a transistor means the part is undersized for the circuit or that the circuit itself is not very efficient. Changing the radio’s modulation circuit is impossible. But the solution for this problem is the Palomar MAX-MOD Transistor. Palomar is a famous old CB brand name from the USA. The name is owned and used now by EKL Components, the mother company also for Magnum Radio’s and RF Limited Accesories. New in the Palomar program is the MAX-MOD, a special PNP transistor. The MAX-MOD is a replacement and upgrade PNP transistor for the modulation circuit in most radio’s. The MAX-MOD replaces the common 2SB and TIP parts. The MAX-MOD works very well in 10M radio’s, including Stryker, Anytone, Galaxy and President models. The MAX-MOD will give the RF section the current it needs and will increase the peak power by and average of 10% or more. The MAX-MOD has the same lead spacing as the smaller transistors it replaces, making soldering very easy. The MAX-MOD uses a huge TO-3PL package for improved heat dissipation.
FESATURES OF PALOMAR MAX-MOD TRANSISTOR: • High Current / High Power PNP Power Transistor (AM Regulator) • Replaces & Upgrades TIP32 & 36, 2SB688, 2SB754, 2SB817, 2SB827 and other AM Regulator Transistors in CB and Amateur Radios • Supplies Necessary Current Levels for Maximum Modulation • Most Radios See a 10% Increase in Peak Power Levels • Runs 40%* Cooler than Stock Regulators • Massive TO-3PL Package for Improved Heat Dissipation • Comes with Mica Insulator
Price includes installation in a new radio. ____________________________________________________________________________________
Regular price: $50.00
Sale price: $45.00
This option moves the frequency range up .900MHz. Starts at 26.065 and ends at 29.655. It uses one of our tighter tolerance LesComm crystals for better frequency stability which reduces drift by a large amount. If we install it includes complete re-tune/alignment for the new frequency range.
Regular price: $50.00
Sale price: $45.00
This option locks your TX/RX together. Makes the Clarifier control both TX/RX frequency together. Highly recommended!!! Don't be one of those guys that sounds like Mickey Mouse when he yells CQ_DX! Keep your transmitter and receiver locked together.
As one that almost exclusively operates on side band, this mod is a must! It is annoying when someone QSK's into a conversation that is totally off frequency. Then everyone tells them they're off frequency but he is unable to tune his transmit to where he hears everyone else talking. So he inevitably gets ignored. With your clarifier controlling both TX & RX at the same time, where you hear operators talking is where your transmit will be sending.
Regular price: $24.99
Sale price: $22.49
WE BUILD CUSTOM RADIOS!
I BELIEVE IN QUALITY BEFORE QUANTITY! (And from the sales I'm receiving, so do you!)
SO IF YOU'RE IMPATIENT, DO NOT ORDER FROM ME!! Let me repeat that, IF YOU'RE IMPATIENT, DO NOT ORDER FROM ME!!
I SIMPLY REFUSE TO RUSH MY BUILDS.
Each radio goes through 24 hours minimum of burn-in testing when it's finished. IT WILL BE RIGHT WHEN IT LEAVES MY SHOP!
Our Build Policy; Average turn around time for "CUSTOM BUILT RADIOS" is running between 90 to 180 days at present (Nov 2018).
Customers are taking advantage of the MANY custom options we offer.
Depending on the difficulty of your build OR THE BUILDS IN FRONT OF IT, this time could be longer!
There are NO REFUNDS for custom radio orders. NO EXCEPTIONS! NO EXCEPTIONS!
SO BE SURE BEFORE YOU ORDER!
Every radio gets tuned/aligned unless you specifically say not to. So, no options radios are usually 10 to 20 business days depending on the model.
20% restocking fee on "as new, non-customized" radio returns.
Radios are built AFTER they are ordered in the order of "payment" received.
AGAIN, THERE ARE NO REFUNDS OR RETURNS ON CUSTOM RADIO ORDERS, NO EXCEPTIONS. So be sure BEFORE you order!
This is how it works folks. When you place an order for one of our custom radios we immediately (that day) order the necessary parts needed to build that radio including the donor radio, and set them aside for your build. So we have already invested your money in your order. We do this to prevent coming up short of the parts needed because it was discontinued or changed. (Which happens a lot!)
I know this is a long time folks. But I'm only one person. I will work as fast as I can, without compromising quality, to get your order out. So as it says above, if you are an impatient person, do not order from me.
Side note; We have stopped selling on ebay. Because of this Lester expects build times to become shorter. And our build times are slowly becoming shorter.
We very much appreciate your business.
And to all of my many, many repeat customers a very special thank you. Tells me I'm doing something right!
