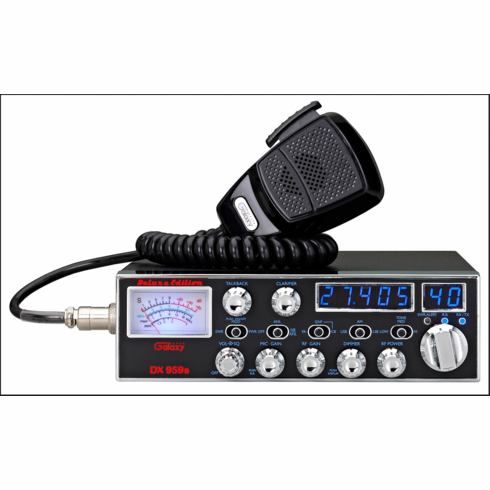

Galaxy DX959b
Galaxy DX959b
Galaxy DX959b
Item#: DX959b
Regular price: $209.99
Sale price: $188.99

Product Description
One of the most popular CB Sideband radios since the Cobra 148GTL. Brand new in the box! Tuned and ready to talk!

Stock Specifications; Model DX959B Channels 40 Frequency Range 26.965 ~ 27.405 MHz Emission AM/USB/LSB Frequency Control Phase-Lock-Loop (PLL) Synthesizer Frequency Stability 0.001% Temperature Range -30°C to +50°C Antenna Impedance 50 Ohms Antenna Connectors Standard SO-239 type Input Voltage 13.8V DC Size 7 1/4” (W) x 9” (D) x 2 1/4” (H) Weight 3.5 lbs. TRANSMITTER RF Power Output AM: 4W; USB/LSB: 12W PEP Spurious Emission > -60 dB Unwanted Sideband -50 dB Audio Distortion < 5% Frequency Response 300 to 2500 Hz Microphone Dynamic RECEIVER Sensitivity for 10 dB (S+N)/N AM: < 0.5 uV ; USB/LSB: < 0.25 uV Squelch Sensitivity < 0.5 uV Selectivity > -50 dB Image Rejection > 60 dB Hum & Noise > -40 dB AGC Figure of Merit 50 mV for 10 dB Change in Audio Output Audio Power Output 2.5W @ 10% Distortion Audio Response 300 to 2500 Hz (SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
Accessories
LesComm Enhancements
Product Description
The enhancements include; -Replace DC input filter/buffer cap with larger capacity. -Replace Voltage Regulator filter/buffer cap with larger capacity. -Replace the 10.7 I.F. ceramic filter with a tighter filter for reduced bleedover. -LesComm Power Tune! Full coverage conversion.

***Some of our radios come with these enhancements. Check the description before adding this option.

.

.

Regular price: $40.00
Sale price: $36.00
LesComm Enhancements LsCmEnh

Palomar MaxMod
Product Description
Product Description Does the regulator in your radio run hot? Excessive heat from a transistor means the part is undersized for the circuit or that the circuit itself is not very efficient. Changing the radio’s modulation circuit is impossible. But the solution for this problem is the Palomar MAX-MOD Transistor. Palomar is a famous old CB brand name from the USA. The name is owned and used now by EKL Components, the mother company also for Magnum Radio’s and RF Limited Accesories. New in the Palomar program is the MAX-MOD, a special PNP transistor. The MAX-MOD is a replacement and upgrade PNP transistor for the modulation circuit in most radio’s. The MAX-MOD replaces the common 2SB and TIP parts. The MAX-MOD works very well in 10M radio’s, including Stryker, Anytone, Galaxy and President models. The MAX-MOD will give the RF section the current it needs and will increase the peak power by and average of 10% or more. The MAX-MOD has the same lead spacing as the smaller transistors it replaces, making soldering very easy. The MAX-MOD uses a huge TO-3PL package for improved heat dissipation.

FESATURES OF PALOMAR MAX-MOD TRANSISTOR: • High Current / High Power PNP Power Transistor (AM Regulator) • Replaces & Upgrades TIP32 & 36, 2SB688, 2SB754, 2SB817, 2SB827 and other AM Regulator Transistors in CB and Amateur Radios • Supplies Necessary Current Levels for Maximum Modulation • Most Radios See a 10% Increase in Peak Power Levels • Runs 40%* Cooler than Stock Regulators • Massive TO-3PL Package for Improved Heat Dissipation • Comes with Mica Insulator

Price includes installation in a new radio.

Regular price: $55.00
Sale price: $49.50
Palomar MaxMod PalMaxMod

Basic Clarifier Mod
Product Description
This option locks your TX/RX together. Makes the Clarifier control both TX/RX frequency together. Highly recommended!!! Don't be one of those guys that sounds like Mickey Mouse when he yells CQ_DX! Keep your transmitter and receiver locked together. As one that almost exclusively operates on side band, this mod is a must! It is annoying when someone QSK's into a conversation that is totally off frequency. Then everyone tells them they're off frequency but he is unable to tune his transmit to where he hears everyone else talking. So he inevitably gets ignored. With your clarifier controlling both TX & RX at the same time, where you hear operators talking is where your transmit will be sending. *

The advantage is that your transmitted signal will be on the same frequency as the signal you are receiving. I'm sure if you've heard any skip on channel 38 you've heard people that are way off from everyone else. They sound like Mickey Mouse or Donald Duck. Some are so far off frequency that you cannot even understand what they are saying. To "unlock" the clarifier means that your transmit is no longer "locked" to where it was set at the factory. It allows you to move around the channel frequency to match your receiver and where everyone else is transmitting and receiving. It also allows you to move off frequency to have a more private/quiet conversation with a friend. We sometimes move to .380 vice .385 just to have a more quiet conversation. So yes, lots of benefits. I wish everyone had their clarifier unlocked.

Deluxe increases slide range.

*****

Regular price: $35.00
Sale price: $31.50
Basic Clarifier Mod BCM2
Select:

Top Gun Tech SP-1a Speech Processor
Product Description
The SP-1a Speech Processor was developed by Clear Channel Corporation for the Ranger AR-3300 and AR3500 radios. It works well in most radios in AM FM & SSB. It is an audio processor that delivers an average of 90% modulation. It boosts lower levels to within 90% of it’s maximum output with a very low distortion. It connects in-line of the audio Mic input of the microphone jack. It also requires a 12 Volt connection in the radio. A SPST switch can be used to switch the SP-1a in and out of the circuit. When switched off the speech processor is completely out of the circuit leaving the radio back to stock audio. Price includes installation.

Regular price: $110.00
Sale price: $99.00
Top Gun Tech SP-1a Speech Processor TGSP1a

Top Gun CP-1
Product Description
Now the same Top Gun Compressor CP-1 circuit used in the new Magnum radios are available for most other 10-meter and many CB radios. Full tone, clear, high swing audio (AM) modulation is achieved with the Top Gun Compressor. Works in AM, FM, and SSB keeping the modulation at peak performance in all these modes. Installation is included.

Regular price: $50.00
Sale price: $45.00
Top Gun CP-1 TG-CP-1

Hi-Cut Filter
Product Description
Cuts white noise in half! It can be made switchable using a SPST switch. Go to this video to see a demo; https://youtu.be/_iZPYDHwoWw Time 12:20.

*****

Regular price: $25.00
Sale price: $22.50
Hi-Cut Filter HiCutFilter1

Dual Final upgrade for Galaxy/Ranger
Product Description
Adds a second IRF520 MOSFET Final with Heatsink and supporting components. FQP or ERF transistor options same as above but add 1 and replace 2 finals.

*****

Regular price: $75.00
Sale price: $67.50
Dual Final upgrade for Galaxy/Ranger GLXYTXRNGRDFU
Transistors:

AD203 Amp
Product Description
Internal 4 MOSFET AMP. Produces a little over 100 watts peak. Replaces the internal speaker for a clean installation.

**Does not replace speaker in the 2547.

3" Fan is mounted over the speaker holes in most radios. For radios such as the McKinley, a 3" hole is cut in the cover for the fan. The fan will run anytime the amp switch is "On".

*****

Regular price: $150.00
Sale price: $135.00
AD203 Amp RMIAD203
3 Inch Fan:

Your Radio Build Video
Product Description
I will create a video of your radio build.

Note; No returns on video.

Regular price: $50.00
Sale price: $45.00
YourRBV1

Private Build Video
Product Description
Just like the headline says. Your radio build video is private.

.

. .

Regular price: $80.00
Sale price: $72.00
Private Build Video PriYRBV

Deluxe Echo Board
Product Description
Deluxe Echo. Installed in various positions on some radios. Installed in Talkback position on DX959's, and Talkback is Deleted.

While supplies last.

Regular price: $55.00
Sale price: $49.50
Deluxe Echo Board DlxEchBd

LesComm Deluxe Ten Turn Clarifier
Product Description
Replaces the Clarifier with a 10 turn precision control. On the DX959 and 2547, adds the LesComm Deluxe clarifier Option for more slide. +/-6KCs.

Due to the size of the 10 turn potentiometer;

On the LC995vXX it replaces the Echo control.

On the LC994v200 & LC998vX00 it replaces the Talkback control. Talkback is moved to the old clarifier position.

Regular price: $75.00
Sale price: $67.50
LesComm Deluxe Ten Turn Clarifier LsCmTenTurn
Radio:  Move TB to Rear if possible:  Potentiometer Upgrade:

TERMS: WE BUILD CUSTOM RADIOS! I BELIEVE IN QUALITY BEFORE QUANTITY! (And from the sales I'm receiving, so do you!)

SO IF YOU'RE IMPATIENT, DO NOT ORDER FROM ME!! Let me repeat that, IF YOU'RE IMPATIENT, DO NOT ORDER FROM ME!! I SIMPLY REFUSE TO RUSH MY BUILDS. Each radio goes through 24 hours minimum of burn-in testing when it's finished. IT WILL BE RIGHT WHEN IT LEAVES MY SHOP!

Our Build Policy; Average turn around time for "CUSTOM BUILT RADIOS" is running between 180 to 240 business days at present (as of Aug 2019). Customers are taking advantage of the MANY custom options we offer. Depending on the difficulty of your build OR THE BUILDS IN FRONT OF IT, this time could be longer! There are NO REFUNDS for custom radio or amplifier orders. NO EXCEPTIONS! NO EXCEPTIONS! SO BE SURE BEFORE YOU ORDER!

"Custom" in this case means that you have added an option that requires a modification to the stock radio. Alignment and Tune ups do not constitute custom. But Max Mod, Clarifier mod, LesComm Enhancements, etc. constitute Custom.

Every radio gets tuned/aligned unless you specifically say not to. So, no options radios are now 10 to 15 business days depending on the model (as of Aug 2019).

20% restocking fee on "as new, non-customized" radio returns. Radios are built AFTER they are ordered in the order of "payment" received.

AGAIN, THERE ARE NO REFUNDS OR RETURNS ON CUSTOM RADIO OR AMPLIFIER ORDERS, NO EXCEPTIONS. So be sure BEFORE you order!

This is how it works folks. When you place an order for one of our custom radios we immediately (that day) order the necessary parts needed to build that radio including the donor radio, and set them aside for your build. So we have already invested your money in your order. We do this to prevent coming up short of the parts needed because it was discontinued or changed. (Which happens a lot!) I know this is a long time folks. But I'm only one person. I will work as fast as I can, without compromising quality, to get your order out. So as it says above, if you are an impatient person, do not order from me.

YOU AGREE TO THESE TERMS WHENEVER YOU PURCHASE FROM THIS WEB SITE.

Side note; We have stopped selling custom radios on ebay. Because of this I expect build times to become shorter. And our build times are slowly becoming shorter. We very much appreciate your business. And to all of my many, many repeat customers a very special thank you. Tells me I'm doing something right! 73 Everybody! Copyright © LestersCustomTruckShop All Rights Reserved. __________________________________________________________________________________________________________________________________________
