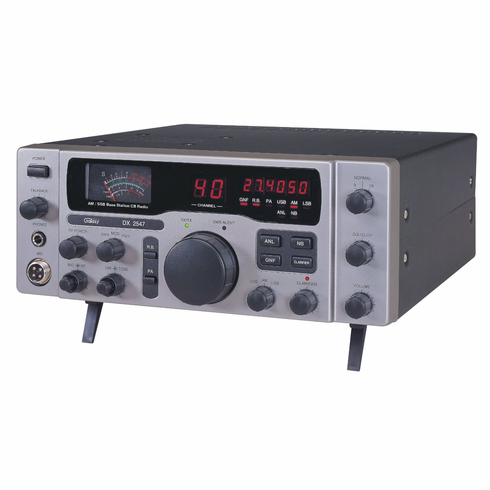

LesComm Improved DX2547
LesComm Improved DX2547
LesComm Improved DX2547
Item#: DX2547
$379.99

Product Description
*LesComm Enhancements included. Buffer/Filter upgrades, Schottky Diode upgrade (if needed), 1st RF amp upgrade, 10.7 I.F. filter upgrade. Complete Peak and Tune. ****SEE AVAILABLE OPTIONS BELOW**** Only one Channel Kit can be ordered with each radio. *Pricing includes installation except for the LC5304, 6404, 5200, 6200 computerized boards with 3 digit display. Installation of these board options in the DX2547 is $100.00USD. Features New Style Midsize Chassis: 4-3/4"H x 11-1/4"W x 13-1/2"D and only 12 lb. Operates on both AC and DC Six Digit Frequency Counter Large, easy-to-read meter with 4 scales: Automatic SWR Circuit (no calibrate control) Talkback Circuit with On/Off Switch and Volume Control Variable Power Output Control Roger Beep with On/Off switch and LED Indicator Galaxy Noise Filter for use on weak signals High SWR Alert LED Indicator Instant Access to Channel 9 or 19 Receive Clarifier with On/Off Switch (Modifiable for RX and TX control and expanded range most SSB users recommend this mod for this radio, see list on the left). Tone Control for receive audio Flip-Down Feet Two Year Factory Warranty (even after we modify it) SHIPPING: 22 x 22 x 14 21lb shipping Outer box. We double box, inside box measures 18 x 13 x 9, and wrapped in large bubble "bubble wrap", Then wrapped in layers 2-4" thick all around. It is insured for at least $300 + the value of your upgrades. *An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.
Accessories
Top Gun CP-1
Product Description
Now the same Top Gun Compressor CP-1 circuit used in the new Magnum radios are available for most other 10-meter and many CB radios. Full tone, clear, high swing audio (AM) modulation is achieved with the Top Gun Compressor. Works in AM, FM, and SSB keeping the modulation at peak performance in all these modes. Installation is included.

$50.00
Top Gun CP-1 TG-CP-1

Top Gun Tech SP-1a Speech Processor
Product Description
The SP-1a Speech Processor was developed by Clear Channel Corporation for the Ranger AR-3300 and AR3500 radios. It works well in most radios in AM FM & SSB. It is an audio processor that delivers an average of 90% modulation. It boosts lower levels to within 90% of it’s maximum output with a very low distortion. It connects in-line of the audio Mic input of the microphone jack. It also requires a 12 Volt connection in the radio. A SPST switch can be used to switch the SP-1a in and out of the circuit. When switched off the speech processor is completely out of the circuit leaving the radio back to stock audio. Price includes installation.

$100.00
Top Gun Tech SP-1a Speech Processor TGSP1a

The RMI AD-203 MOSFET Amp
Product Description
Internal 4 MOSFET AMP. Produces a little over 100 watts peak. Replaces the internal speaker for a clean installation.

**Does not replace speaker in the 2547.

$125.00
RMIAD203

Deluxe Echo Board
Product Description
Deluxe Echo. Installed in various positions on some radios. Installed in Talkback position on DX959's, and Talkback is Deleted.

While supplies last.

$55.00
Deluxe Echo Board DlxEchBd

LC5304 Expansion Board
Product Description
No "encoder" required. I wrote code in the software that allows the use of the Channel Selector switch to go up or down. It even deals with the out-of-sequence steps around channel 23. This means you won't need to rebuild the channel selector area of your radio to have a 3 digit display! As promised - easy installation. Galaxy 9X9's are still Plug & Play. ** Uniden made radios such as Cobra and others will still need the adapters so soldering is required on these. Continuous channel tuning. No skips. Buyers choice. Uniden made radios; Lo-26.065 to 27.975 or Hi-26.815 to 28.725. Uniden/Cobra Ranger made radios; Lo-26.065 to 27.975 or Hi-26.695 to 28.605. Ranger/Galaxy You can choose to use either band. The display will track the frequencies/channels correctly. Both the 11.1125 and 11.3258 in Cobra's. Or swap the crystal for 26.065 to 27.975. SquelchScanTM. Scan Up or Down. Scan stops when a signal is received. Hi Range; Channel 1 Reference; -15 / c19 / 172 (26.815 to 28.725)Uniden/Cobra Channel 1 Reference; -27 / c19 / 160 (26.695 to 28.605)Ranger/Galaxy OR Lo Range; Channel 1 Reference; -90 / c19 / 97 (26.065 to 27.975) "-" indicates all channels below 1 "u" indicates all channels above 40 "c" e.g. c19, indicates cb channels. A's are 03A, 07A, etc.) Channel Selector Function (CSF) switch. Changes the channel selector to your band switch. Jumps 45 channels Up or down with each click. The displays will be available in either Blue-35mcd, Red-30mcd or Green-25mcd. *New Pure Green-35mcd. Price includes internal Piggy-back PCBoard kit (to replace internal channel display) See above. ** Internal display will require soldering. This kit is assembled after your order is received. Please allow for assembly time. WARNING! This unit is Not Legal For Class D CB Use In The U.S.A. *An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.

$125.00
lc5304-expansion-b5304
Color:  Radio Model:  Frequency Range:

The LC6404 Expansion Board
Product Description
No "encoder" required. I wrote code in the software that allows the use of the Channel Selector switch to go up or down. It even deals with the out-of-sequence steps around channel 23. This means you won't need to rebuild the channel selector area of your radio to have a 3 digit display! **As promised - easy installation. Galaxy 9X9's are still Plug & Play. Uniden made radios such as Cobra and others will still need the adapters so soldering is required on these. **Continuous channel tuning. No skips. Cobra=26.065 to 27.975 or 26.815 to 28.725. Galaxy coverage depends on model. Buyers choice.You can choose to use either band. The display will track the frequencies/channels correctly. Both the 11.1125 and 11.3258 in Cobra's. Or swap the crystal for 26.065 to 27.975. **SquelchScanTM. Scan Up or Down. Scan stops when a signal is received. **There are 2 display modes available accessed via a switch. Display modes are; Frequency = 6.96 (26.965-CB Ch 1) CB Ch 1 Reference = -90 thru u97 (Kit crystal) - indicates all channels below 1 u indicates all channels above 40 e.g. c19, indicates cb channels. A's are 03A, 07A, etc.) The displays will be available in either Blue-35mcd, Red-30mcd or Green-25mcd(dim). New Pure Green-35mcd. **Another new feature is the 5-Memory Channel feature. Using Store and Get on a SPDT momentary switch. One way stores it, the other selects it and the radio jumps to it. Stores up to 5 channels for instant recall. **There's a Band UP/Down feature. The CSF switch changes your channel selector to a band switch. Jump 45 channels up or down with the click of the channel selector. **Price includes an internal PCBoard display kit (to replace internal channel display,but not required). Internal display will require soldering.

This kit is assembled after your order is received. Please allow for assembly time.

WARNING! This unit is Not Legal For Class D CB Use In The U.S.A. *An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.

$175.00
the-lc6404-expansion-b6404
Color:  Radio Model:  Frequency Range:

LC35-128 Galaxy - Ranger
Product Description
LC35-128 Galaxy-Ranger version Product Description Designed to compete directly with the Galaxy-Viagra board. Gives 3 band coverage but also has a +10kc switch to get those "A" channels the Viagra kit doesn't! Unlike the Viagra kit, it uses the PLL to obtain the additional frequencies therefore eliminating all of the problems with the Viagra board. All bands use one clarifier circuit and forget about adjusting 6 coils to get all modes on frequency on Hi and Lo bands! The PLL circuit locks in those channels and modes just as it does for the regular CB channels! Yet, it retains the ability to upgrade. On the Galaxy radio's, it can use the NB/ANL switch. For the Galaxy 2547, 939 or 959-DX but will fit any radio with the same board. Such as the Ranger Freedom-One TR696, 936, 966, 969 and the Texas Ranger 396. Simply change the crystal X3 with the one in the kit, unplug the NB/ANL or TONE switch and plug it into the board. Then unplug the channel selector cable and plug into the LC35, plug the LC35's cable into the main board. You're done!! No more center frequency shifts when you change bands because the switching is done in the PLL, not with crystals. The Microprocessor has a built in oscillator so changes happen lightning fast. WARNING! This unit is Not Legal For Class D CB Use In The U.S.A. *An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio equipment.








Regular price: $90.00
Sale price: $70.00
LC35-128 Galaxy - Ranger LC35-128GR

192 CHANNEL UPGRADE FOR THE LC35
Product Description
This option upgrades your LC35-128 to an LC35-192. It increases your number of channels from 128 to 192. It uses a 5 position rotary switch instead of the toggle.

NOTE! Must be ordered at the same time as your kit. Cannot be added later.

WARNING! This unit is Not Legal For Class D CB Use In The U.S.A.

*An Amateur License is required to transmit in the Amateur bands. You are responsible for the legal operation of your radio

Regular price: $50.00
Sale price: $30.00
192 CHANNEL UPGRADE FOR THE LC35 192CHUPGD

Your Radio Build Video
Product Description
I will create a video of your radio build.

Note; No returns on video.

Regular price: $30.00
Sale price: $20.00
YourRBV1

20% restocking fee on "as new" non-customized radio returns.

Radios are built AFTER they are ordered in the order of payment received. THERE ARE NO RETURNS ON CUSTOM RADIO ORDERS, NO EXCEPTIONS. This is how it works folks. When you place an order for one of our custom radios we immediately order the necessary parts needed to build that radio including the donor radio, and set them aside for your build. So we have already invested your money in your order. We do this to prevent coming up short of the parts needed because it was discontinued or changed.

Our Build Policy; Normal turn around time for "custom radios" "should be" 60 to 90 days. Depending on the difficulty of your build or the builds in front of it, this time could be longer. There are NO REFUNDS for custom radio orders.

No options radios are usually 5 to 10 business days depending on model.
